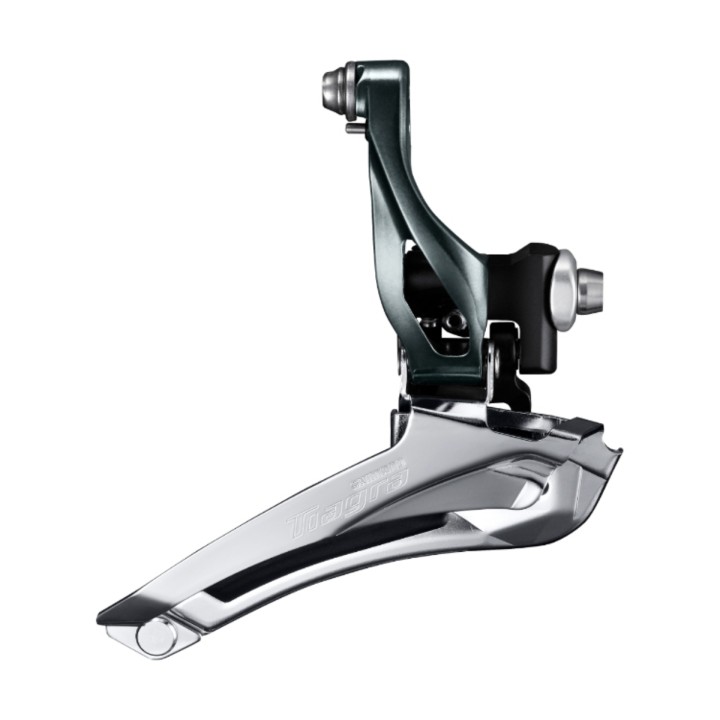

Shimano Tiagra 4700 FD-4700-F 2x10-Speed Braze-On Front Derailleur

Shimano Tiagra FD-4700-F Front Derailleur

The Shimano Tiagra FD-4700-F is a front derailleur designed for 2x10-speed drivetrains from the Tiagra 4700 series.

The Braze-On version mounts directly to the corresponding frame mount and features a Down Swing design. Shimano has developed the derailleur with a longer link arm to provide a light shifting action at the shift lever and precise, reliable gear changes.

⚙️ Tiagra 2x10-Speed Drivetrain

The FD-4700-F is designed specifically for a drivetrain with two front chainrings and 10 rear speeds. Shimano specifies a 16T total capacity.

The derailleur is compatible with HG-X 10-speed chains, according to Shimano specifications.

Braze-On Mounting

The FD-4700-F uses a Braze-On mounting system, designed for bicycles equipped with the corresponding frame mount.

Before purchasing, check that the frame is compatible with this type of front derailleur mounting.

Precise and Reliable Shifting

The Shimano Tiagra derailleur features a longer link arm, designed to provide a lighter shifting action at the shift lever while supporting precise and reliable front shifting.

The Down Swing mechanism completes the derailleur design, developed to work with Tiagra 4700 10-speed drivetrains.

Compatibility

The Shimano Tiagra FD-4700-F is designed for 2x10-speed systems and uses an HG-X 10-speed chain.

Shimano specifies a 43.5 mm chain line, a compatible 61-66° rear chainstay angle and an upper chainring range of 46-52T.

Technical Specifications

Why Choose the Shimano Tiagra FD-4700-F?

🚴 The Shimano Tiagra FD-4700-F is designed for riders using a Tiagra 4700 2x10-speed drivetrain and looking for a reliable front derailleur engineered to work with the Shimano system.

The Braze-On mounting, Down Swing mechanism and 16T total capacity complete a configuration specifically designed for Tiagra 4700 drivetrains.
