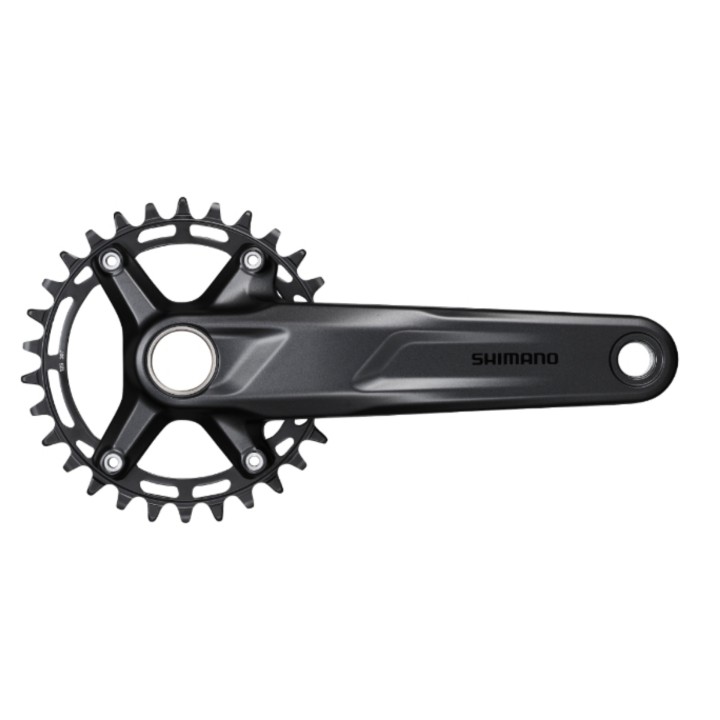

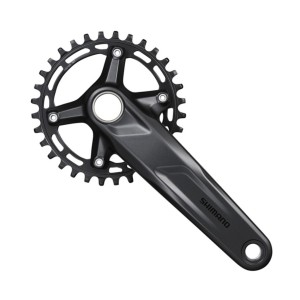

Shimano Deore FC-MT511-1 12-Speed Crankset

Shimano Deore FC-MT511-1 Crankset

The Shimano Deore FC-MT511-1 is a crankset designed for 1x12-speed MTB drivetrains. Its single-chainring configuration simplifies drivetrain operation, while DYNAMIC CHAIN ENGAGEMENT+ technology helps maintain chain retention during MTB riding.

The model is available with a 30T or 32T chainring and 175 mm crank arms, allowing you to choose the combination that best suits your setup and riding requirements.

1x12-Speed Configuration

The FC-MT511-1 is designed for 1x12-speed drivetrains, with a single front chainring and rear derailleur handling the gear changes.

The available configurations feature a 30T or 32T chainring. The appropriate size can be selected according to the rest of the drivetrain, the type of terrain and the rider's preferred gearing.

DYNAMIC CHAIN ENGAGEMENT+

The DYNAMIC CHAIN ENGAGEMENT+ technology uses a specific chainring tooth profile developed by Shimano for single-chainring MTB drivetrains.

This tooth profile helps improve chain retention, an important feature when riding on rough terrain and during XC, Trail and Enduro riding.

Single Chainring

The single-chainring configuration removes the need for a front derailleur and front shift lever, simplifying the drivetrain and its operation.

The FC-MT511-1 is available with both 30T and 32T chainrings, allowing the gearing to be adapted to the intended setup.

175 mm Crank Arms

The configurations available for this product feature 175 mm crank arms. Crank arm length is an important parameter when choosing a crankset and should be considered in relation to the bike's geometry, riding position and the rider's preferred pedalling setup.

52 mm Chain Line

The Shimano FC-MT511-1 features a 52 mm chain line. This configuration is designed for compatible MTB drivetrain setups and frames with an O.L.D. of 142 or 148 mm.

MTB Compatibility

The FC-MT511-1 is designed for use with 1x12-speed MTB drivetrains. Before purchasing, it is important to check compatibility with the rest of the drivetrain, including crank arm length, chainring size and frame specifications.

Technical Specifications

Why Choose the Shimano Deore FC-MT511-1?

• Designed for 1x12-speed MTB drivetrains
• Single-chainring configuration
• Available with a 30T or 32T chainring
• 175 mm crank arms
• DYNAMIC CHAIN ENGAGEMENT+ technology for improved chain retention
• 52 mm chain line
• Compatible with frames featuring 142/148 mm O.L.D.
• Designed for XC, Trail and Enduro riding
• Shimano Deore quality and reliability

The Shimano Deore FC-MT511-1 is designed for riders looking for a straightforward and functional crankset for a 1x12-speed MTB drivetrain, with the choice of a 30T or 32T chainring to suit the desired setup.
