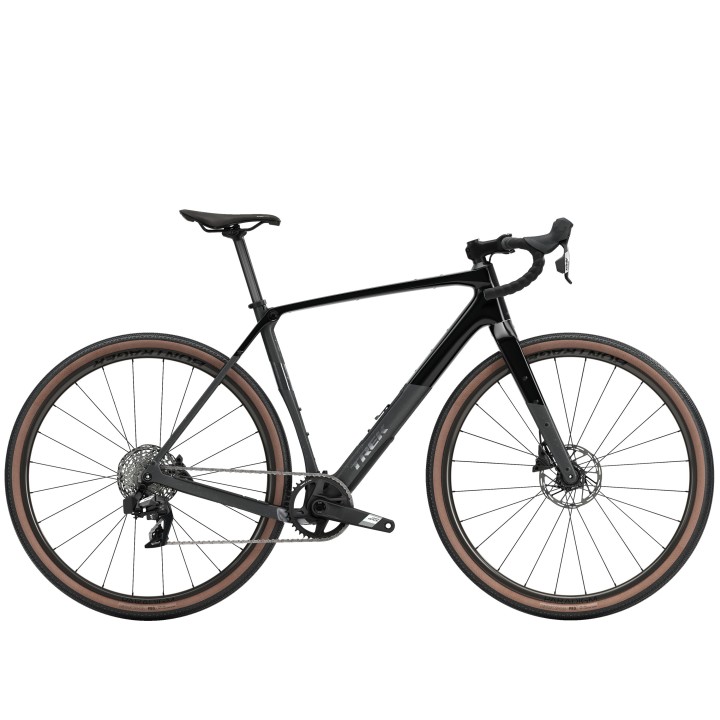

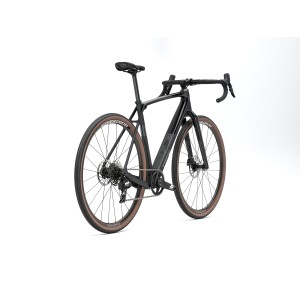

Checkpoint SL 5 AXS GEN 3

The Checkpoint SL 5 AXS Gen 3 is the ideal companion for those who love long adventures on gravel routes. Built with a lightweight and durable carbon frame, this bike offers a geometry specifically designed to ensure maximum comfort even during the longest rides. The wheels can accommodate tires up to 50 mm wide to handle any type of terrain, while the numerous mounts distributed across the frame and fork make it easy to carry everything you need for your adventures. The integrated IsoSpeed technology effectively absorbs road vibrations, making the ride smoother on rough surfaces. The wireless SR transmission enables precise and reliable shifting, ensuring high performance in any situation.

Technical Specifications

• rotor size: Brake rotor size

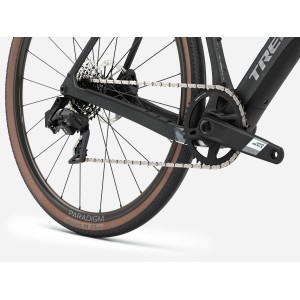

• cassette: SRAM XPLR PG-1231, 11-44, 12-speed
• frame: OCLV 500 Series Carbon, IsoSpeed, storage door on down tube, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS headset, hidden cable routing, T47, flat mount disc, integrated chain guide, removable FD mount
• rims: Bontrager Paradigm SL, Tubeless Ready, 24 holes, 21mm width, Presta valve // Bontrager Paradigm 23, Tubeless Ready, 24 holes, 23mm width, Presta valve
• rear hub: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
• front hub: Bontrager alloy, sealed bearing, Centerlock disc, 100x12mm thru axle
• chain: SRAM Apex, 12-speed
• tires: Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220tpi, 700x42mm
• rear derailleur: SRAM Apex XPLR eTap AXS, max sprocket 44 teeth

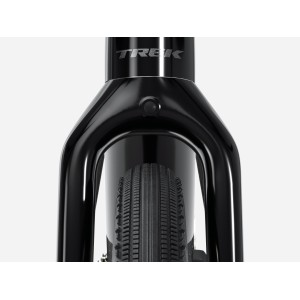

• fork: Checkpoint full carbon, tapered carbon steerer, fender mounts, rack mounts, flat mount disc, 12x100mm slotted thru axle
• seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length
• wheels: Bontrager Paradigm SL
• battery: SRAM eTap battery (with charger)

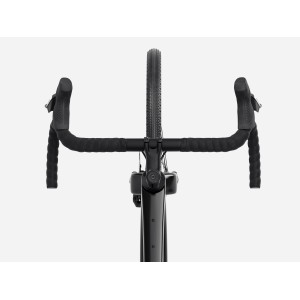

• handlebar:
  • L - ML: Bontrager Elite Gravel, alloy, 44cm width
  • XL: Bontrager Elite Gravel, alloy, 46cm width
  • XS: Bontrager Elite Gravel, alloy, 40cm width
  • M - S: Bontrager Elite Gravel, alloy, 42cm width
• saddle:
  • L - M - ML - XL: Verse Short Comp, steel rails, 145mm width
  • S - XS: Verse Short Comp, steel rails, 155mm width
• crankset:
  • S - XS: SRAM Apex 1, 40 teeth, DUB Wide, 165mm length
  • L - ML: SRAM Apex 1, 40 teeth, DUB Wide, 172.5mm length
  • M: SRAM Apex 1, 40 teeth, DUB Wide, 170mm length
  • XL: SRAM Apex 1, 40 teeth, DUB Wide, 175mm length
