Rail + 8 Jan 5

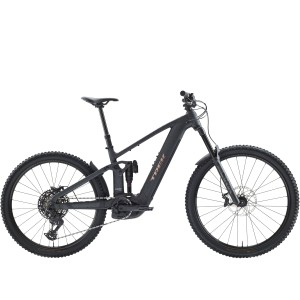

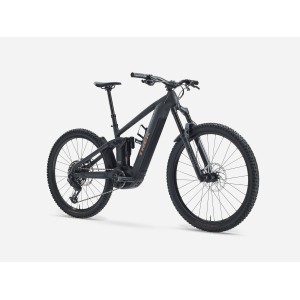

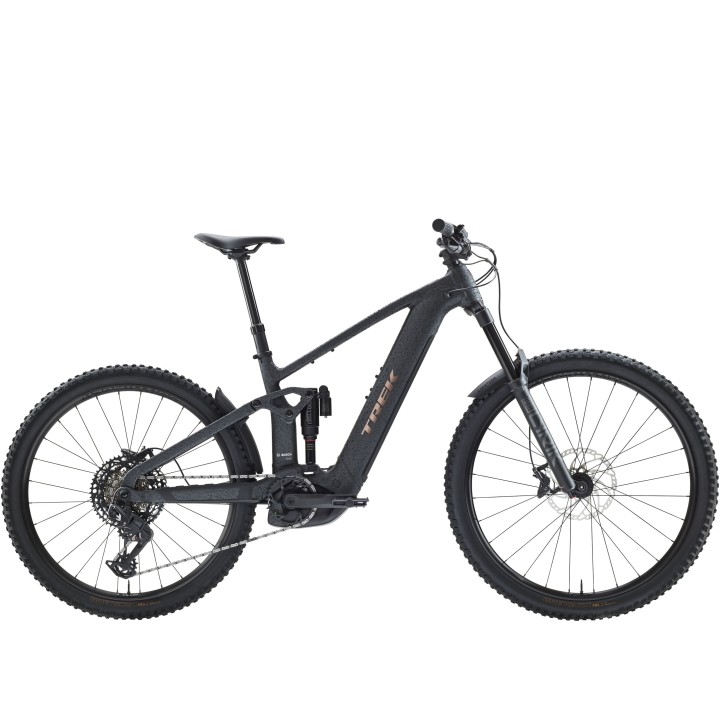

Trek Rail+ 8: the aluminum e-enduro ready for anything

The Trek Rail+ 8 is an aluminum enduro e-MTB designed for riders who want to push hard in any condition. The Alpha Platinum Aluminum frame houses RockShox suspension with 160mm of front and rear travel: the Lyrik Select fork and Super Deluxe+ shock work together to let you float over rock gardens, roots, and bike-park rock sections.

The heart of the Rail+ 8 is the Bosch Performance Line CX Smart System motor: 85Nm of torque as standard, upgradeable up to 100Nm and 750W via the Bosch eBike Flow app. The eMTB mode with Extended Boost automatically meters assistance based on the terrain, giving you traction, control, and power when you really need it.

The SRAM Eagle 12-speed drivetrain ensures precise shifting even under load, while the Shimano M620 4-piston brakes deliver consistent stopping power on the longest and steepest descents. The Bontrager Line dropper post and Bontrager Line TLR 30 wheels round out a build made for aggressive electric enduro riding.

If you’re looking for a powerful, reliable, and fun enduro e-bike , the Trek Rail+ 8 is your ideal companion for technical trails, alpine rides, and epic backcountry adventures.

Technical Specifications

ELECTRONICS

• Motor: Bosch Performance Line CX (Europe and APAC: 25km/h, USA and rest of world: 20mph/32km/h)

• Battery: Bosch PowerTube 800Wh, Smart System

FRAMESET

• Frame: Alpha Platinum Aluminum, removable integrated battery (RIB 2.0), tapered head tube, guided internal cable routing, Motor Armor, angle-adjust headset, adjustable Mino Link geometry, adjustable leverage ratio, 34.9mm seat tube, ABP, UDH, Boost148, thru axle

• Fork:

  • L - M - XL : RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 160mm travel
  • S : RockShox Lyrik, Delta RC, DebonAir+, tapered steerer, 44mm offset, Boost 110, 15mm Maxle Stealth, 160mm travel

DRIVETRAIN

• Pedals: Nylon platform

• Crankset: FSA alloy, 160mm length

• Chain: SRAM Eagle 70, T-Type, 12-speed

• Cassette: SRAM Eagle XS-1270, T-Type, 10-52, 12-speed

• Rear Derailleur: SRAM Eagle 70, T-Type

• Brake: Shimano MT620 hydraulic disc // Shimano BR-MT620 hydraulic disc

WHEELS

• Rims:

  • L - M - XL : Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve // Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
  • S : Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve

• Hubs:

  • Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle

  • Rear: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle

• Tyres:

  • L - M - XL : Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60tpi, 29x2.50" // Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60tpi, 27.5x2.50"
  • S : Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60tpi, 27.5x2.50"

COMPONENTS

• Saddle: Bontrager Verse P3, steel rails

• Seatpost:

  • S : Bontrager Line Elite dropper post, 150mm travel, MaxFlow, internal cable routing, 34.9mm, 440mm length // Bontrager Line dropper post, 150mm travel, MaxFlow, internal routing
  • M : Bontrager Line dropper post, 170mm travel, MaxFlow, internal cable routing, 34.9mm, 450mm length
  • L - XL : Bontrager Line dropper post, 200mm travel, MaxFlow, internal cable routing, 34.9mm, 515mm length

• Handlebar: Race Face Aeffect, alloy, 35mm, 40mm rise, 800mm width

• Grips: Trek Line Comp, nylon lock-on

• Brakes: Shimano MT620 hydraulic disc // Shimano BR-MT620 hydraulic disc

• Rotor size: Shimano RT76, 6-bolt, 203mm
