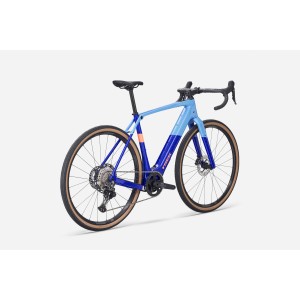

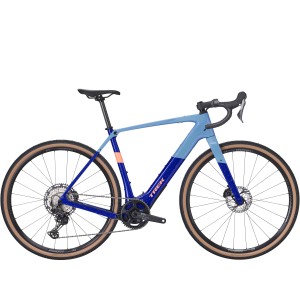

Checkpoint + SL 5

Discover new horizons and push your limits: the Trek Checkpoint+ SL 5 is the electric gravel bike that redefines two-wheeled adventure.

Designed for curious cyclists, from enthusiasts to experienced riders looking for new routes away from traffic, this bike combines the lightness and responsiveness of the OCLV carbon frame with the quiet and natural assistance of the TQ HPR60 motor. Forget the fear of fatigue and range: with a 360Wh battery and over 80 km (in eco mode), you can enjoy extended explorations, challenging climbs, and long rides without compromising on comfort and performance. The 12-speed Shimano GRX 1x drivetrain is made for gravel and guarantees absolute precision in shifting even when the road gets rougher, while the endurance geometry is designed to eliminate every excuse and let you clock up miles with a relaxed and confident riding position.

Get on the Checkpoint+ SL 5: your next adventure is just waiting for you.

Technical Features

• controller: TQ LED Display with Bluetooth and ANT+ connectivity

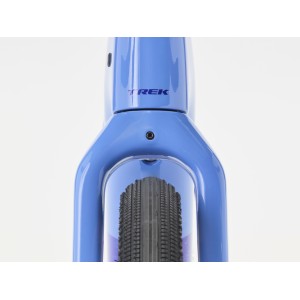

• fork: Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
• battery: TQ 360Wh
• rear derailleur: Shimano GRX RX822, max 51-teeth cog
• rotor size: Front rotor size
• seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length
• wheels: Bontrager Paradigm Comp 25
• chain: Shimano XT M8100, 12-speed
• frame: OCLV 500 Series Carbon, TQ drive system, IsoSpeed, rack mounts, integrated frame bag mounts, hidden fender mounts, internal cable routing, flat mount disc, integrated chain guide, UDH, tapered 142x12mm thru axle
• saddle: Verse Short Comp, steel rails, 145mm width
• tires: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60tpi, 700x42mm
• motor: TQ-HPR60, 60 Nm, max continuous rated power 300W, peak power 350W
• cassette: Shimano XT M8200, 10-51, 12-speed
• crankset:
  • S - XS: Praxis alloy, 165mm length
  • M - ML: Praxis alloy, 170mm length
  • L - XL: Praxis alloy, 172.5mm length

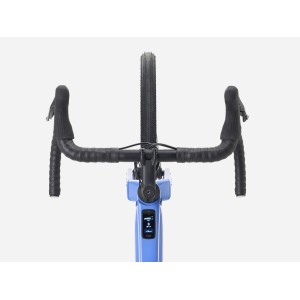

• handlebar:
  • S - XS: Bontrager Elite Gravel, alloy, 40cm width
  • M - ML: Bontrager Elite Gravel, alloy, 42cm width
  • L: Bontrager Elite Gravel, alloy, 44cm width
  • XL: Bontrager Elite Gravel, alloy, 46cm width

: .
