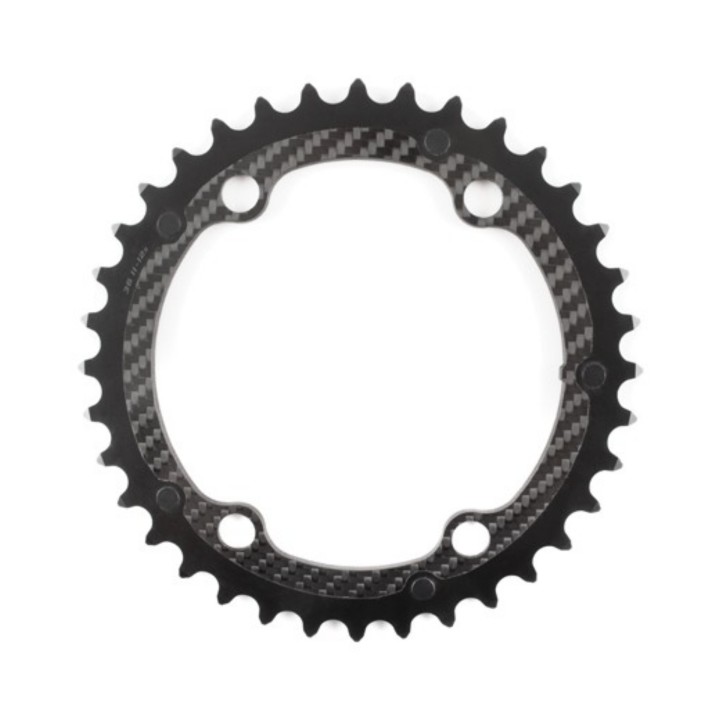

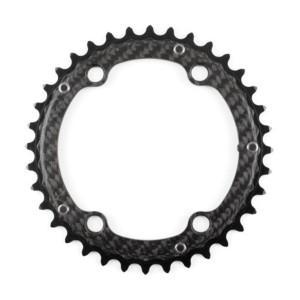

Carbon-Ti X-CarboRing 36T 110 BCD 4-Arm Road Chainring for Shimano Dura-Ace

Carbon-Ti X-CarboRing 36T 110 BCD 4-Arm Road Chainring

The Carbon-Ti X-CarboRing 36T is a lightweight inner chainring designed for high-performance road bikes. Its composite structure combines AL7075-T6 aluminium and structural 3K carbon fibre with a glossy finish, complemented by Grade 5 titanium pins.

With 36 teeth, a 110 mm BCD and 4-arm configuration and a claimed weight of just 33 g, the X-CarboRing is designed to deliver low weight and precise drivetrain performance.

• ⚙️ 36 teeth
• 📐 110 mm BCD – 4-arm
• 🪶 Weight: 33 g
• 🛠️ AL7075-T6 aluminium
• 🖤 Structural 3K carbon fibre
• 🔩 Grade 5 titanium pins
• 🇮🇹 100% Made in Italy

🪶 Composite Carbon Fibre and Aluminium Construction

The X-CarboRing uses a composite structure made from structural carbon fibre and AL7075-T6 aluminium. The carbon fibre body features CNC machining and incorporates Grade 5 titanium pins.

This construction helps keep the chainring weight low while providing a structure designed for high-performance road use.

⚙️ Individually CNC-Machined Teeth

Each individual tooth made from AL7075-T6 aluminium is CNC-machined separately and features a specific shape designed to optimise the chainring's operation in different riding conditions.

The individual machining of the teeth contributes to the precision and correct operation of the chainring within the drivetrain.

🔩 Grade 5 Titanium Pins

The chainring incorporates Grade 5 titanium pins, which form part of the structure designed to support correct drivetrain operation and chain movement between the chainrings.

⚙️ Shimano and SRM Compatibility

The Carbon-Ti X-CarboRing 36T is compatible with Shimano Dura-Ace FC-9200, FC-9100 and FC-9000 cranksets, Ultegra FC-8100, FC-8000 and FC-6800 cranksets, as well as SRM Origin.

The chainring is compatible with Shimano 11- and 12-speed groupsets and with SRAM 11-speed groupsets.

🔗 Compatible Carbon-Ti Outer Chainrings

The X-CarboRing 36T is compatible with the X-Carboring EVO 52 x 110 DA9200 (4-arm), X-Carboring EVO 52 x 110 DA9100 (4-arm) and X-Carboring EVO 52 x 110 (4-arm) outer chainrings, as well as previous equivalent non-EVO models.

This compatibility makes it possible to create a 52/36 Carbon-Ti double chainring configuration, maintaining the appropriate combination of inner and outer chainrings.

🔧 X-Fix ROAD Installation Kit

For installation, Carbon-Ti recommends using the X-Fix ROAD kit, made from AL7075-T6 aluminium and customised with laser engraving.

The kit is available in a wide range of anodised colours, allowing the drivetrain components to be customised visually as well.

🪶 Just 33 Grams

With a claimed weight of just 33 g, the X-CarboRing 36T is designed for riders who pay particular attention to reducing the weight of their road bike components.

🇮🇹 100% Made in Italy

Like all Carbon-Ti products, the X-CarboRing 36T is 100% Made in Italy, combining composite materials, CNC machining and titanium components.

📋 Main Technical Features

🏁 Why Choose the Carbon-Ti X-CarboRing 36T?

The Carbon-Ti X-CarboRing 36T is designed for riders looking for an extremely lightweight inner chainring made using high-quality materials and precision machining. Its AL7075-T6 aluminium and 3K carbon fibre structure, Grade 5 titanium pins and weight of just 33 g make it a dedicated solution for high-performance road drivetrains.

Its compatibility with several generations of Shimano Dura-Ace and Ultegra cranksets, SRM Origin and Carbon-Ti outer chainrings also makes it possible to build a lightweight and coordinated 52/36 configuration, with the quality of a 100% Made in Italy product.
