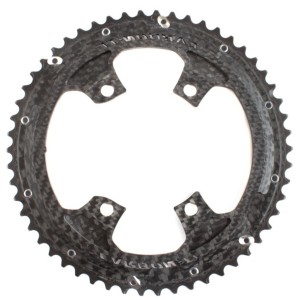

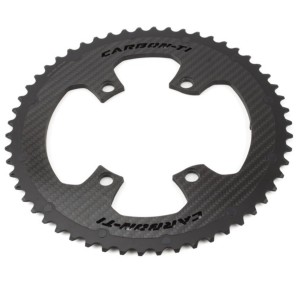

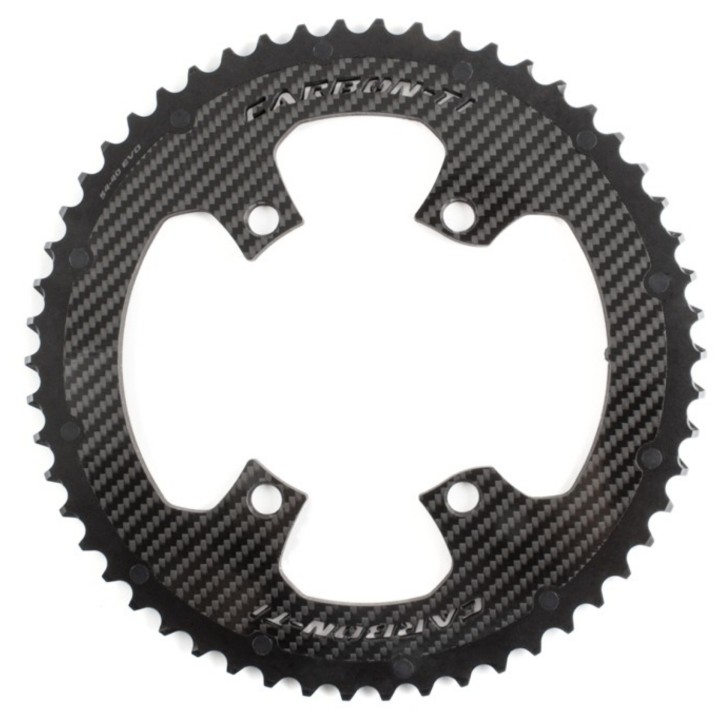

Carbon-Ti X-Carboring EVO 54T 110 BCD 4-Arm Road Chainring for Shimano Dura-Ace 9200

Carbon-Ti X-Carboring EVO 54T 110 BCD 4-Arm Road Chainring

The Carbon-Ti X-Carboring EVO 54T is a lightweight outer chainring designed for high-performance road bikes. It belongs to the X-Carboring EVO family, Carbon-Ti's evolution of lightweight chainrings featuring a composite aluminium and carbon fibre construction.

The chainring features 54 teeth, a 110 mm BCD with a 4-arm configuration and a claimed weight of 114 g. It is specifically designed for Shimano Dura-Ace and Ultegra 12-speed cranksets and selected power meter systems.

• ⚙️ 54 teeth
• 📐 110 mm BCD – 4-arm
• 🪶 Weight: 114 g
• 🛠️ AL7075-T6 aluminium
• 🖤 Structural 3K carbon fibre with glossy finish
• 🔩 Grade 5 titanium pins
• 🇮🇹 100% Made in Italy

🪶 Composite Aluminium and Carbon Fibre Construction

The X-Carboring EVO combines AL7075-T6 aluminium alloy with structural 3K carbon fibre with a glossy finish. EVO outer chainrings use thicker carbon fibre plates to achieve increased stiffness and allow more elaborate CNC machining.

The construction is designed to keep the chainring weight low while providing a rigid and precise solution for high-performance road drivetrains.

🔩 Titanium Pins and Fast Shifting

The Grade 5 titanium elements have been redesigned to work together with the shifting ramps and help transfer the chain from the smaller chainring to the larger one.

The combination of the ramps and titanium elements enables fast shifting with both electronic and mechanical derailleurs.

⚙️ Shimano and Power Meter Compatibility

The X-Carboring EVO 54 x 110 is compatible with Shimano Dura-Ace FC-9200 and Ultegra FC-8100 cranksets, as well as SRM Origin, Rotor Power Meter INSpider and the Shimano Dura-Ace FC-R9200-P power meter crankset.

Compatibility is provided for Shimano 11- and 12-speed groupsets and chains, as well as SRAM 11-speed groupsets.

Not compatible with SRAM AXS 12-speed groupsets. For these drivetrains, the dedicated X-AXS chainrings should be selected.

🔧 Compatible with 40T and 38T Inner Chainrings

The X-Carboring EVO 54T must be installed together with a compatible inner chainring. Carbon-Ti specifies the X-CarboRing 40 x 110 (4-arm) or the X-CarboRing 38 x 110 (4-arm) as compatible options.

For installation on a Shimano Dura-Ace 9200 12-speed crankset, Carbon-Ti recommends the specifically shaped X-Cover DA9200 kit, made from AL7075-T6 aluminium.

Alternatively, the X-Fix ROAD kit is available, featuring laser-engraved details and a wide range of anodised colours.

🪶 114-Gram Weight

With a claimed weight of 114 g, the X-Carboring EVO 54T is designed for riders looking for a lightweight, high-performance outer chainring for their road bike.

🇮🇹 100% Made in Italy

Like all Carbon-Ti products, the X-Carboring EVO 54T is 100% Made in Italy, combining composite materials, CNC machining and titanium components.

📋 Main Technical Features

🏁 Why Choose the Carbon-Ti X-Carboring EVO 54T?

The Carbon-Ti X-Carboring EVO 54T is designed for riders looking for a lightweight, high-performance outer chainring for their road drivetrain. Its AL7075-T6 aluminium and 3K carbon fibre construction, Grade 5 titanium pins and CNC machining provide a component designed for stiffness and fast shifting.

The option to pair it with either a 40T or 38T inner chainring provides flexibility when choosing the compatible configuration specified by Carbon-Ti, while retaining the quality of a 100% Made in Italy product.
